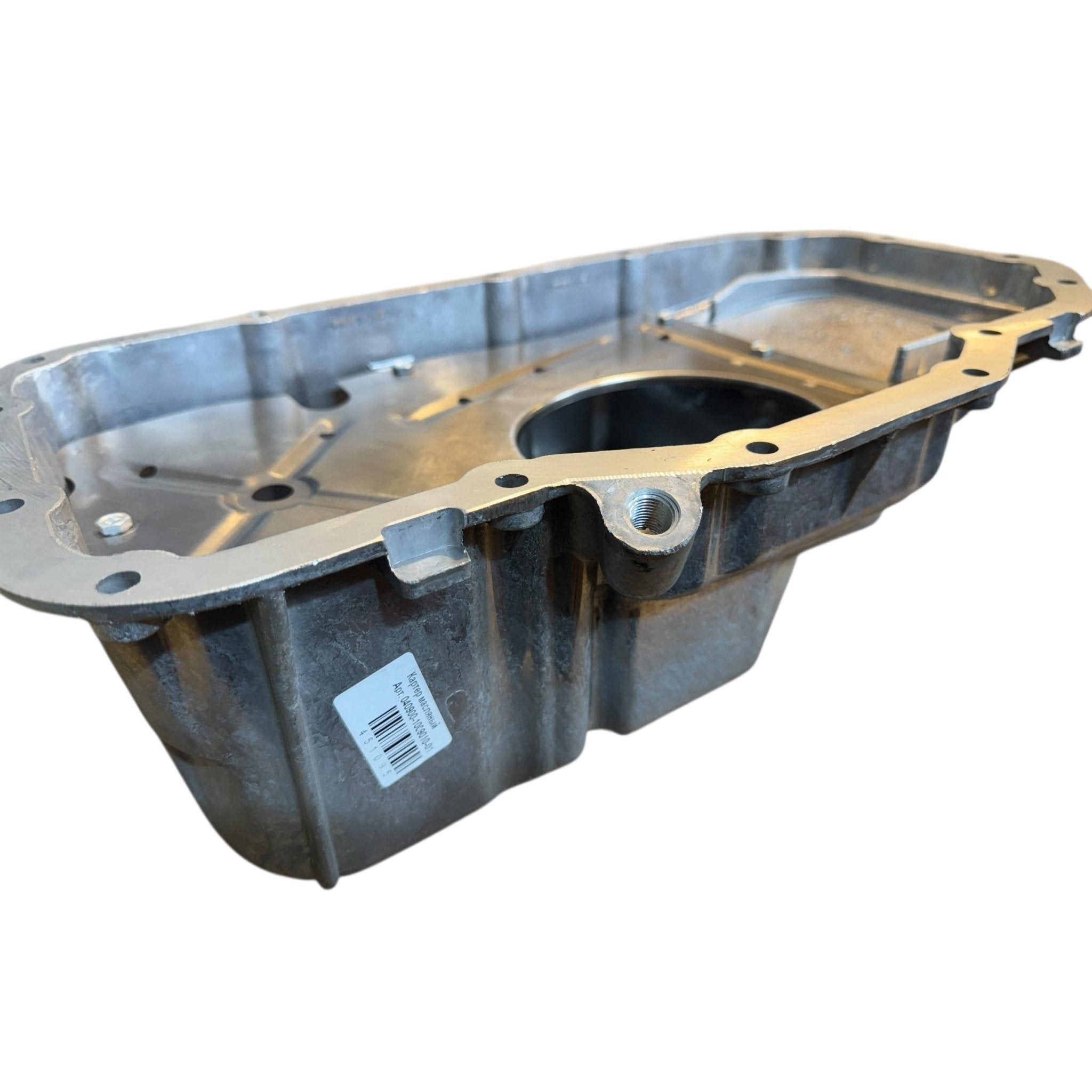

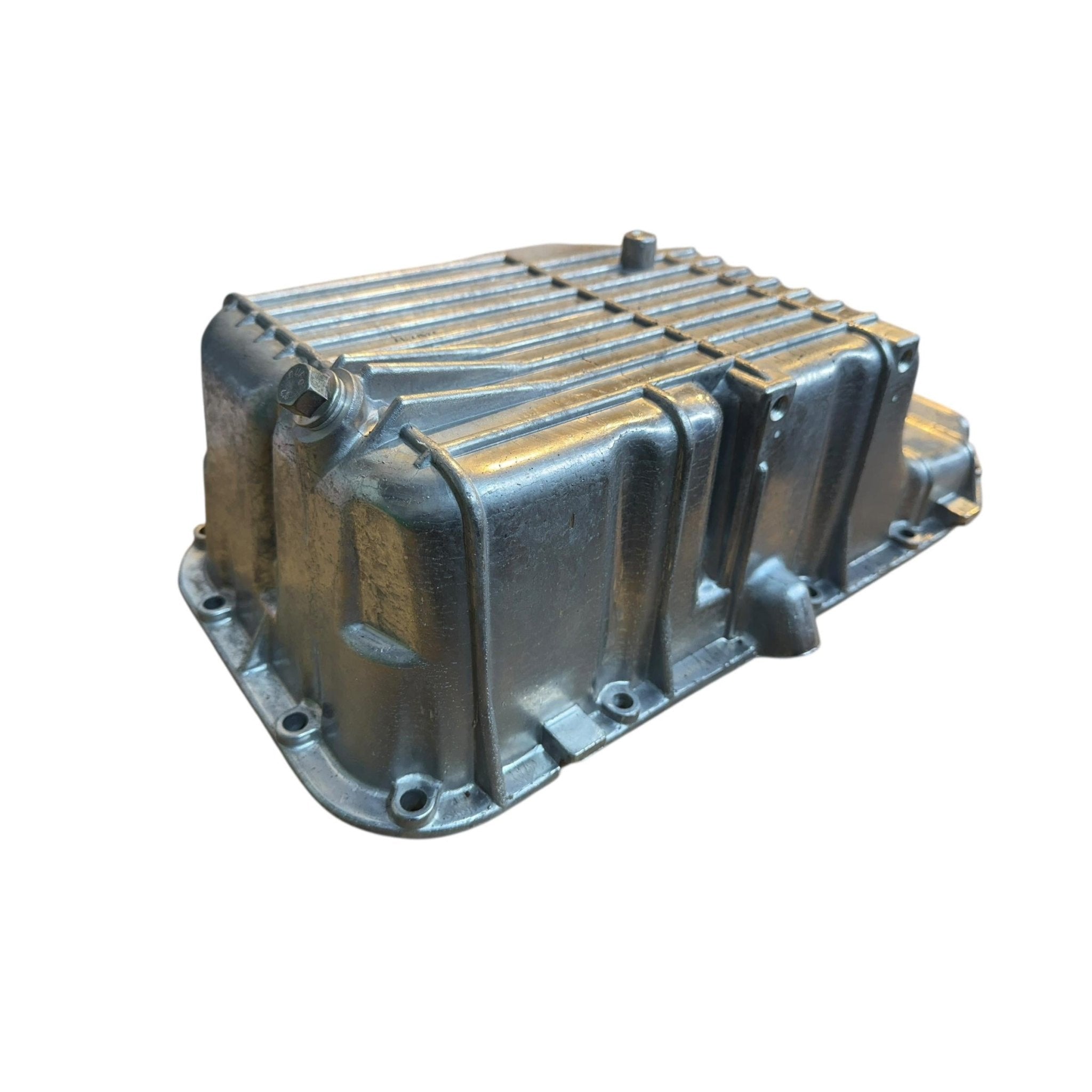

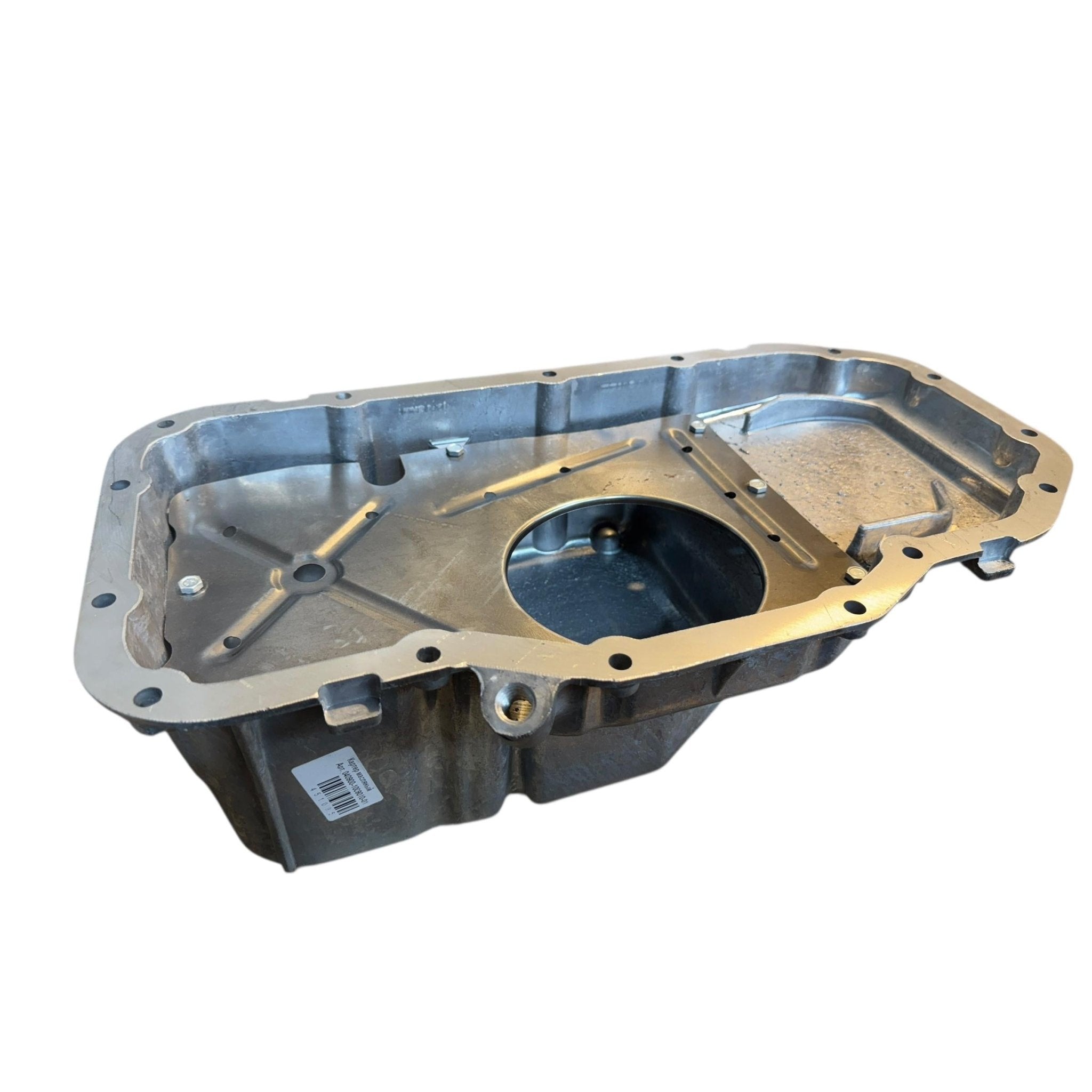

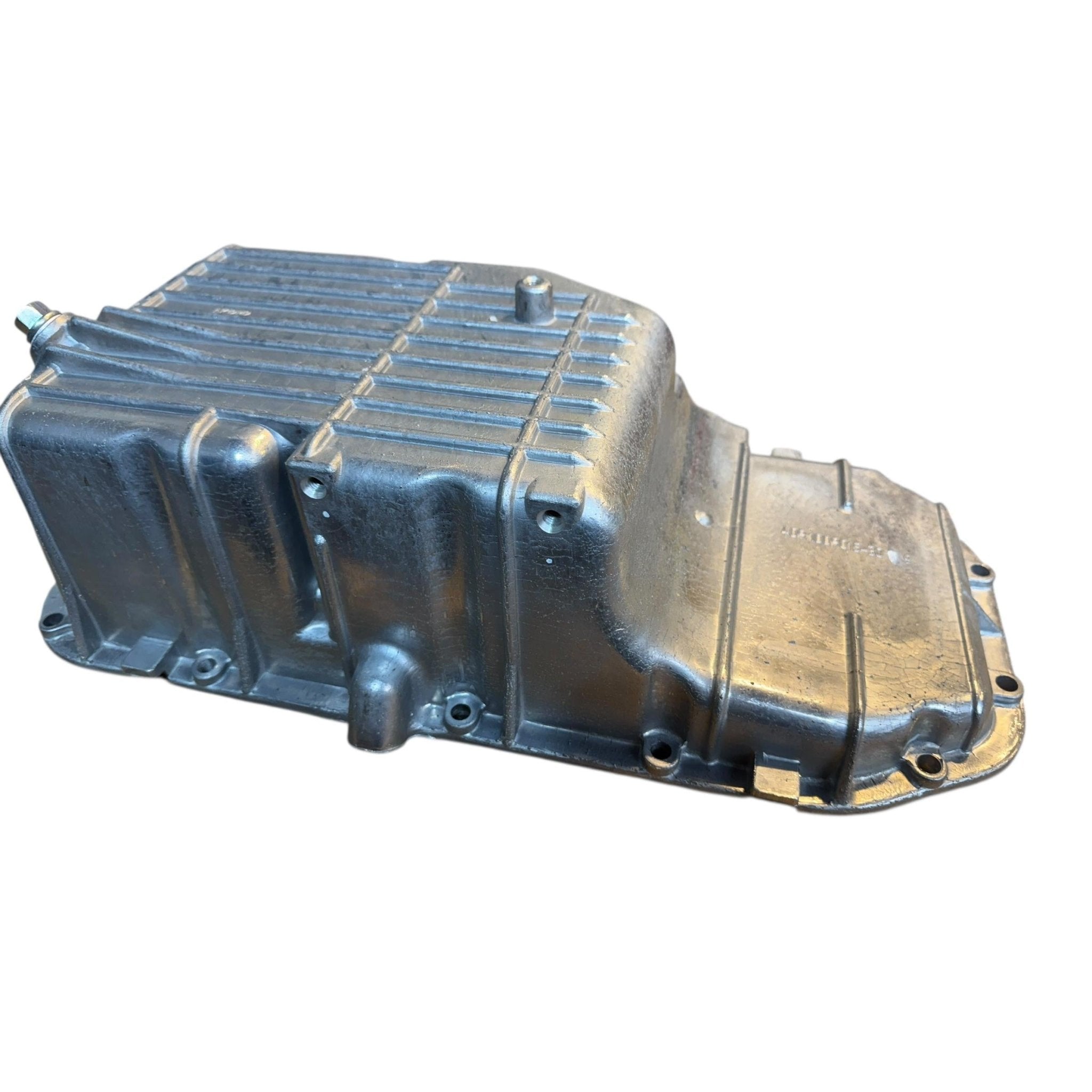

Oil Sump Pan – Bukhanka Modern, Hunter & 469 (2.7 Injection), Patriot, Profi – OEM 409-1009010-01
This oil sump pan fits Bukhanka Modern (2.7 L Injection), Hunter & 469 series (2.7 Injection), Patriot, and Profi models equipped with the ZMZ-409 petrol injection engine. Manufactured to original factory specifications, it ensures precise fitment to the...
This oil sump pan fits Bukhanka Modern (2.7 L Injection), Hunter & 469 series (2.7 Injection), Patriot, and Profi models equipped with the ZMZ-409 petrol injection engine. Manufactured to original factory specifications, it ensures precise fitment to the engine block, correct oil capacity, and accurate oil pickup positioning for optimal lubrication performance. Built to OEM reference 409-1009010-01, this pan maintains original design features for long-term reliability.
Why choose this oil sump pan?
An OEM-standard sump pan guarantees the correct clearances and sealing surfaces for the ZMZ-409 engine. This prevents misalignment, ensures consistent oil circulation, and maintains the designed drain plug location. Its sturdy steel construction provides mechanical strength, resists deformation from impacts, and aids in oil cooling by dissipating heat.
Technical details:
Material: high-quality stamped steel with welded drain flange
Finish: factory bare metal or corrosion-resistant paint (batch-dependent)
Engine: ZMZ-409 2.7 L petrol injection

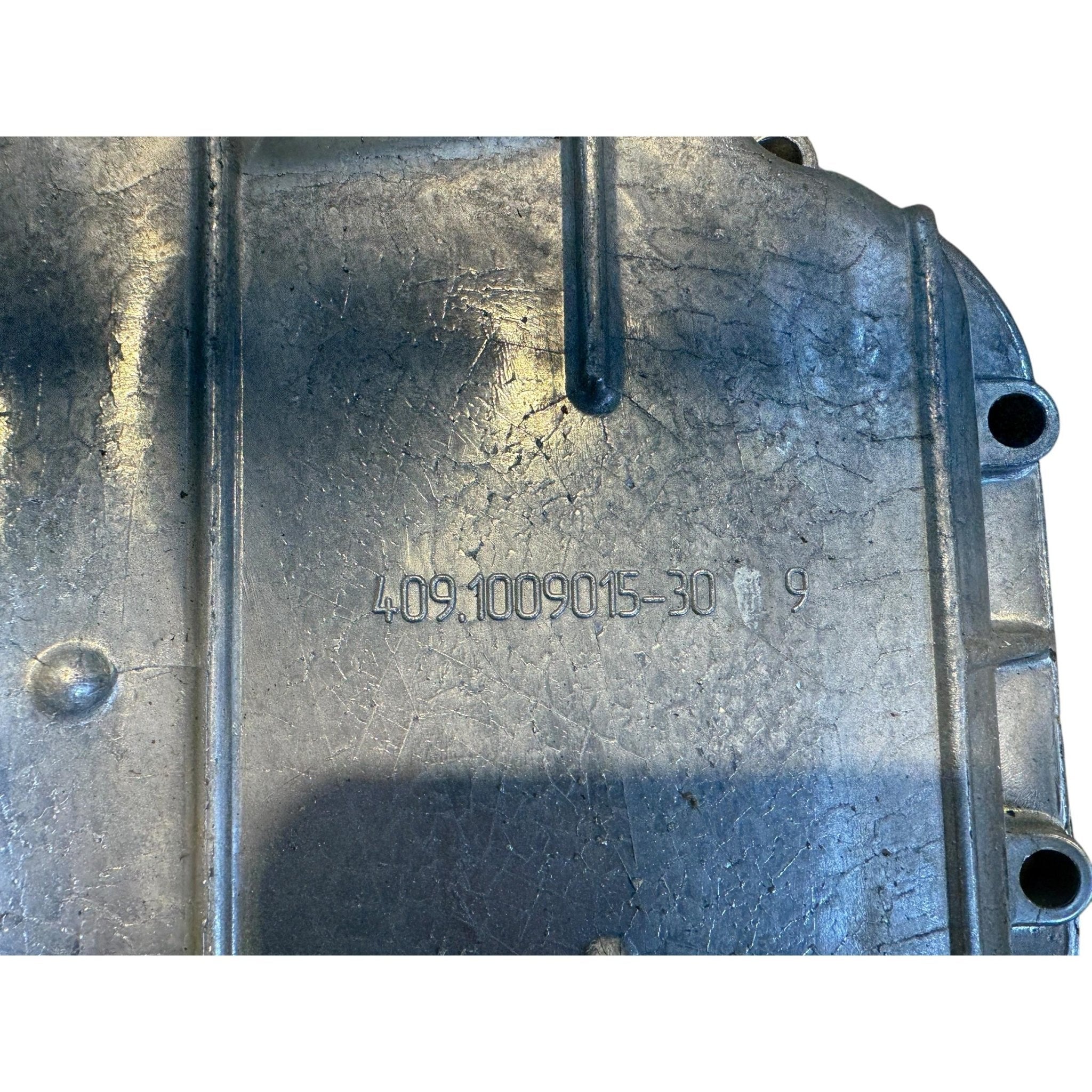

OEM reference: 409-1009010-01
Condition: brand-new, unused factory-spec replacement
Compatible models:
Bukhanka Modern (2.7L Injection)
Hunter & 469 series (2.7 Injection)
Patriot
Profi
Installation tips:
Remove the old sump pan and thoroughly clean all mating surfaces. Always use a new gasket or high-quality engine oil–rated sealant. Tighten mounting bolts evenly in a criss-cross pattern to manufacturer torque specifications. Replace the drain plug washer, torque the plug to specification, and refill with the correct oil grade and quantity.
When to replace?
Replace if the sump is dented, cracked, corroded, leaking at the flange, or has excessive sludge buildup. Installing a new OEM-style pan restores factory oil volume, improves sealing integrity, and supports reliable lubrication after engine repairs or overhauls.
Not sure if this part fits your UAZ? No worries – we’ve got you covered. Every part is carefully selected, but not every Bukhanka, Hunter or 469 is exactly the same. Want to be 100% sure before ordering? Send us the details of your vehicle and we’ll verify compatibility for you. Fast, free and hassle-free.
| What we need: | Vehicle type, year and engine version (or a photo of the ID plate) |
| Contact: | Contact form or support@uazparts.com |
| Response time: | Usually within 1 business day |
