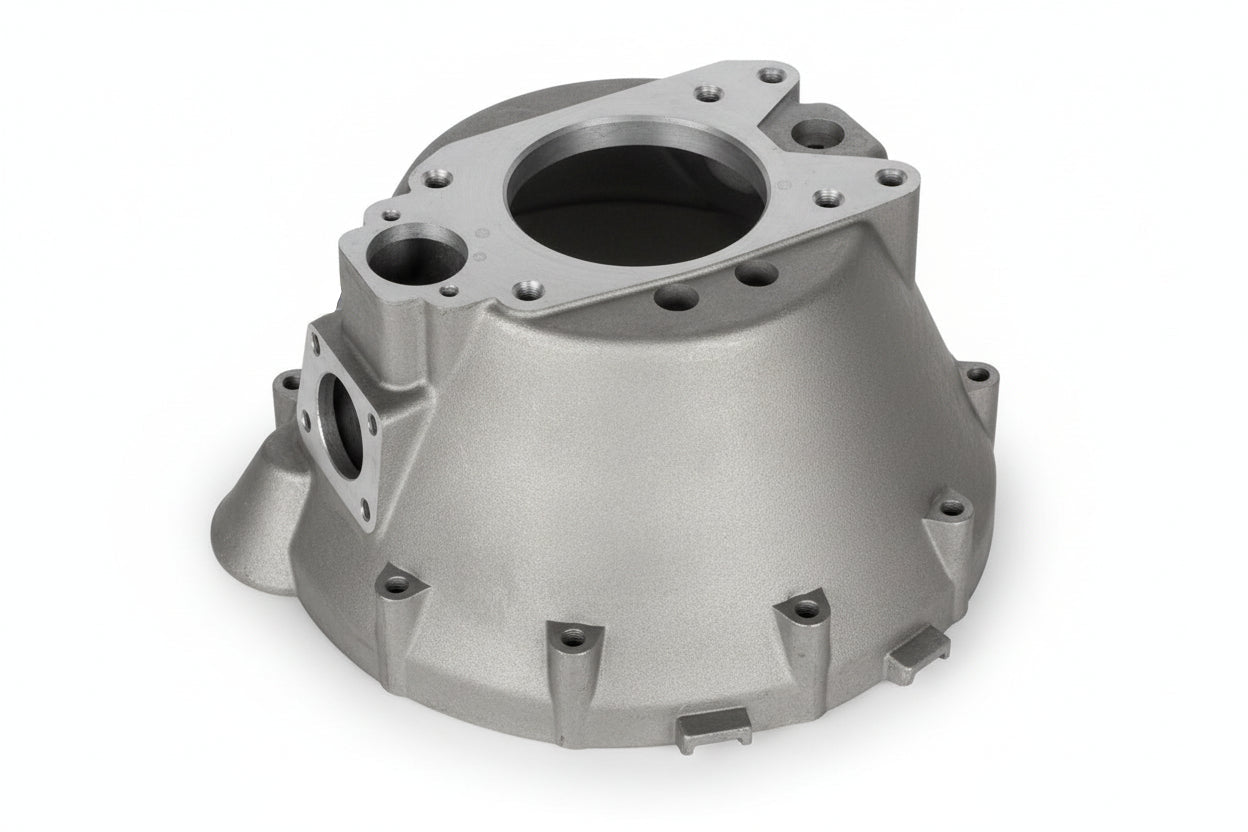

Bellhousing ZMZ-409/514 – Patriot; Hunter & 469; Bukhanka Modern (2.7L)
This clutch bellhousing fits Patriot, Hunter & 469, and Bukhanka Modern (2.7L) models equipped with ZMZ-409 or ZMZ-514 engines. It links the engine...
This clutch bellhousing fits Patriot, Hunter & 469, and Bukhanka Modern (2.7L) models equipped with ZMZ-409 or ZMZ-514 engines. It links the engine block to the transmission, aligning the input shaft and starter, and providing a rigid, oil-tight housing for the clutch assembly.
Why choose this bellhousing?
A straight, undamaged bellhousing is essential for smooth clutch engagement and long gearbox life. Replacing a cracked or warped housing restores input-shaft alignment, reduces vibration, and prevents premature wear of the release bearing and pilot/input bearings. This unit is dimensioned for ZMZ-409/514 applications used across modern UAZ light-duty platforms.
Technical details:
Engine compatibility: ZMZ-409 / ZMZ-514
Material: metal (cast)
Reference (label/OEM on listing): 409.1601015
Approx. weight: 4.8 kg (listed 4750 g)
Approx. dimensions (listed): 370 × 387 × 190 mm
Finish: grey
Country of manufacture (listed): Russia
Compatible models:
Patriot
Hunter & 469 (2.7L)
Bukhanka Modern (2.7L)
Installation tips:
Clean mating faces, verify dowel pins are present, and dry-fit to ensure the starter and clutch fork clearances are correct. Torque all fasteners in a cross pattern to the service-manual spec, check that the input shaft slides freely through the clutch hub, and confirm the release bearing travels without binding. Inspect the rear main seal, pilot bearing, and clutch fork pivot while access is open.
When to replace / Why upgrade
Replace if the bellhousing is cracked, oil-soaked from repeated seal failures, or shows misalignment symptoms (difficult gear engagement, rapid release-bearing wear). A correct housing protects the clutch and gearbox and helps prevent recurring vibration issues.
Not sure if this part fits your vehicle? Feel free to contact us — we’re happy to help.
Not sure if this part fits your UAZ? No worries – we’ve got you covered. Every part is carefully selected, but not every Bukhanka, Hunter or 469 is exactly the same. Want to be 100% sure before ordering? Send us the details of your vehicle and we’ll verify compatibility for you. Fast, free and hassle-free.
| What we need: | Vehicle type, year and engine version (or a photo of the ID plate) |
| Contact: | Contact form or support@uazparts.com |
| Response time: | Usually within 1 business day |
